CHA/V goodies for workshop participants

Screen Shot 2018-08-26 at 6.19.30 PM.png

build

Some basic patching:

Some more “advanced” patching and extended technique.

Note: If you want to mess with touch points and copper scrubby shenanigans, please stick with battery power unless you’re reasonably confident with electronics. You can potentially get a shock, start a fire, and/or blow something up. Also, the chips are durable, but not indestructible.

Bill of Materials (BOM):

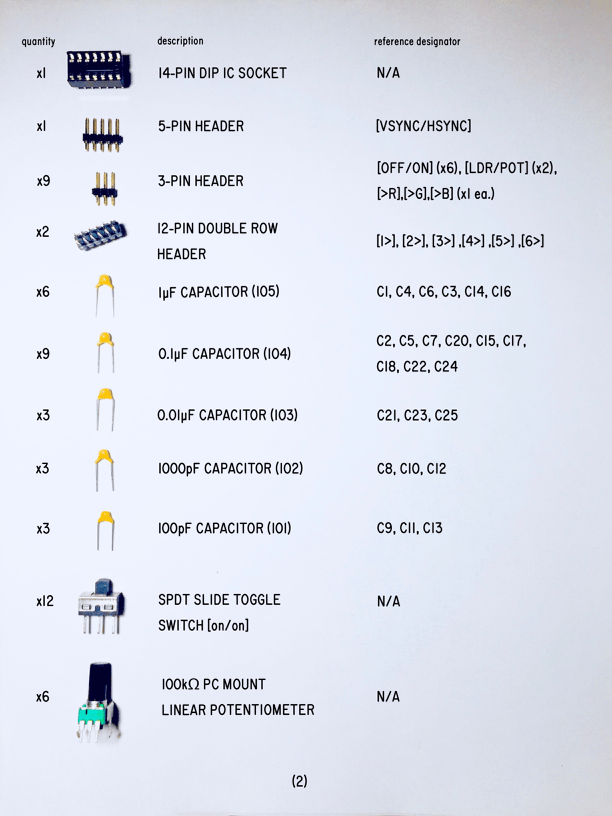

page 2

*Error: Eleven 3-pin headers are needed, not nine.

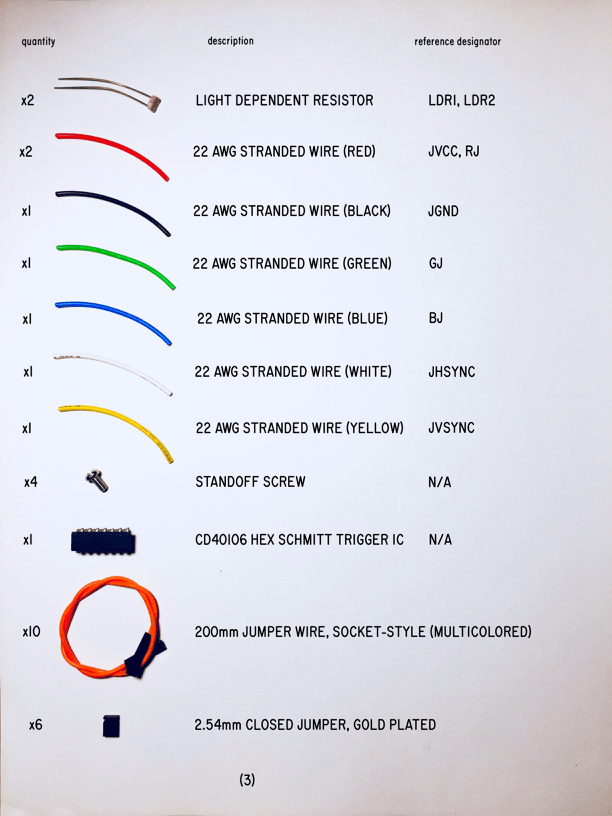

page3

Everything you wanted to know about a VGA Test Signal Generator:

n00bguide4

Note: The wire trimming/tinning recommendations are only to connect wires to the VGA pins. When wiring to the board, strip away as much insulation as you like, and do not tin the wires before connecting them to the board.

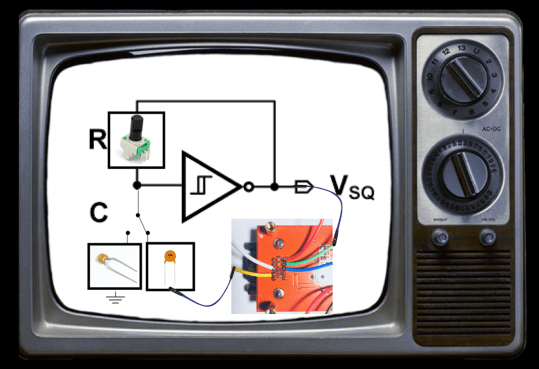

The oscillator schematic (friendly version):

Screen Shot 2018-08-26 at 6.20.14 PM.png

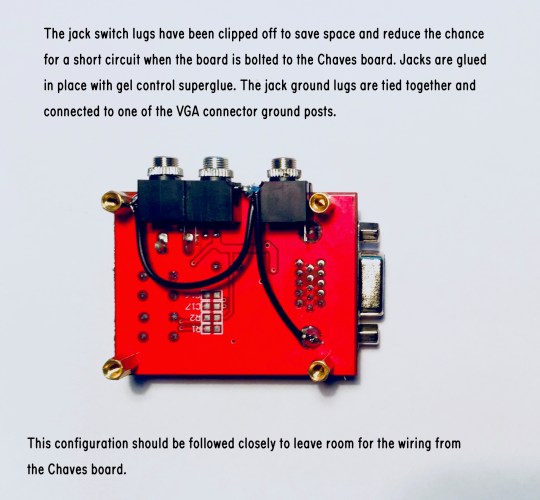

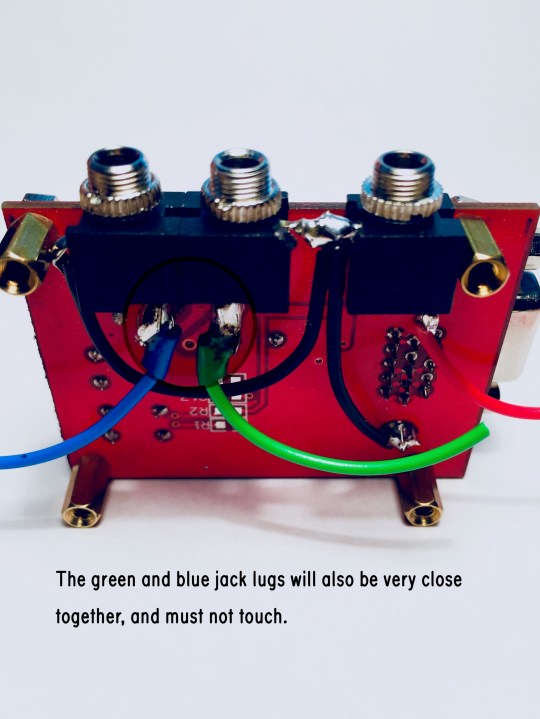

How to connect 3.5mm (1/8″) jacks to the VGA test board for audio in/out. Video and photos below:

IMG_4546IMG_4558IMG_4564IMG_4570

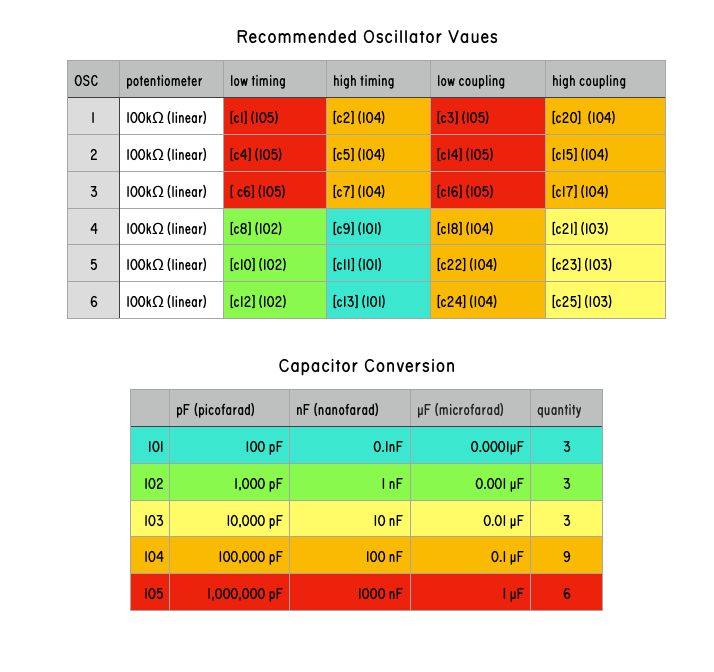

Capacitor Stuff:
Screen Shot 2018-08-26 at 6.17.20 PM.png

Links for things/people mentioned in the Workshop:

https://jonasbers.com/chav/

http://www.jenkutler.com

http://themidithief.com

http://videocircuits.blogspot.com

http://lofifuture.tumblr.com

https://github.com/ohss/RGBNDR

https://news.umbc.edu/timothy-nohe-exhibits-at-washington-college/

https://github.com/Ttreintaysiete/chaves

http://criticalartware.net/DistributionReligion/DistributionReligion.pdf

http://www.experimentaltvcenter.org

http://signalculture.org

http://www.karlklomp.nl

http://synth-punk.blogspot.com/2010/08/vco-schematic.html

http://crackedraytube.com

http://www.andrew-duff.co.uk

http://gieskes.nl

https://glitchart.com

https://www.lzxindustries.net//

VIDEOS:



Useful links for sourcing your own parts:

Note: the part descriptions from the Bill of Materials can be used as search terms on electronics websites.

Tayda is a good place for beginners to shop for parts. The website probably the easiest component supplier site to navigate. The prices are cheap, and the quality is acceptable. Most of the parts we used for the workshop came from Tayda.

https://www.taydaelectronics.com

Mouser is what you want to use when you get a little more serious. It’s daunting to navigate for beginners, but worth the challenge. They have pretty much anything you could possibly need, and shipping is to the US is FAST. There are also import tools for spreadsheets and BOMs. More expensive than Tayda, many higher quality alternatives available. I do most of my shopping here.

 https://www.mouser.com

All Electronics has an amazing retail location in North Hollywood, CA. Some of the parts for the workshop at Coaxial were actually purchased here! These places are endangered species — support them whenever you can.

https://www.allelectronics.com

Sparkfun is a good place to buy things like little LED add-on boards and they also have good tutorials for the basics.

https://www.sparkfun.com

Ali Express is where our VGA test boards came from. Shipping is unpredictable, and they can be infuriating to deal with, but they’re probably the cheapest place to buy them. If you hate them (like I sometimes do) you can also search eBay for the boards and look for US distributors.

https://www.aliexpress.com

SEEED Studio is where I had the Chaves boards manufactured. You can copy the Gerber files from the Github link and have your own boards made. They’re 10 for $2, but thanks to our idiotic president, the shipping from China is now roughly $35.

https://www.seeedstudio.com

Here’s another great link for taking the oscillator circuit further: http://milkcrate.com.au/_other/sea-moss/
